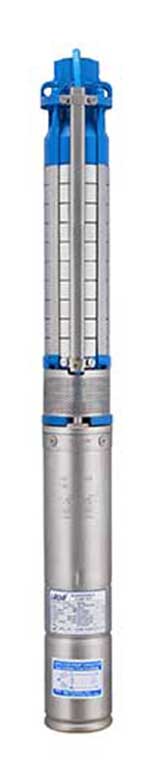

V4 Oil Filled Series (96mm)

Salient Features

  • The motors are designed to start at low voltage & work in a wide voltage fluctuation.
  • Well-designed sleeve and tilting thrust bearings for longer life.
  • Stator & Rotor are vacuum impregnated and coated properly with epoxy paint to ensure corrosion resistance & reduce eddy current losses.
  • High operating efficiencies of pump set results into high water discharge rate and less power consumption.
  • Rotors are dynamically balanced to ensure long bearing life and vibration free smooth operation.
  • Less power consumption & operating cost due to high pump efficiency.
  • Pumps are provided with a reliable non-return valve to reduce water hammering & friction losses.

Applications

  • Agriculture & Irrigation schemes.
  • Village water supply schemes.
  • Community water Supply.

Technical Specifications

Power Rating Range

1 HP to 2 HP

Head Range in Meters

12 Meters to 182 Meters

Discharge Range in LPM

170 LPM to 15 LPM

Working Voltage Range

160 Volts to 240 Volts

Frequency

50 Hz

Power Rating Range

1 HP to 2 HP

Head Range in Meters

12 Meters to 182 Meters

Discharge Range in LPM

170 LPM to 15 LPM

Working Voltage Range

250 Volts to 440 Volts

Frequency

50 Hz
