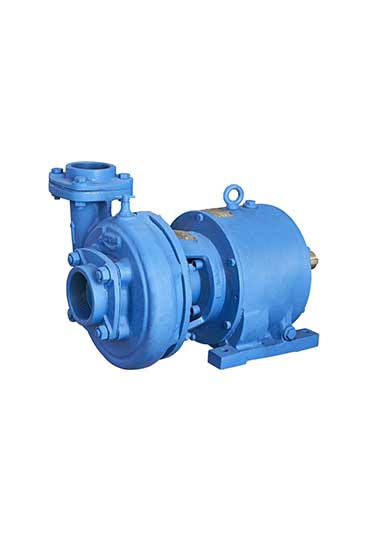

Tractor Pumps

Salient Features

  • Used where there is no electricity and power is generated by tractor.
  • Stainless Steel ball bearings on both the sides.
  • Italian technique is used for designing the pump.
  • Available in both 545 RPM as well as 1000 RPM.
  • Anti-corrosive paint for external surfaces.
  • Direct assembly to the tractor PTO shaft.
  • Built meticulously for meeting the growing demands of customers.
  • Compact in size and easy to install in an open well.

Applications

  • Dewatering purpose.
  • Agriculture & Irrigation purpose

Technical Specifications

Power Rating Range

15 HP – 30 HP

Head Range in Meters

17 Meters – 78 Meters

Discharge Range in LPM

2300 LPM – 325 LPM

Operating Speed

545 RPM -1000 RPM

Sealing Arrangement

Gland Packing

Max Liquid Temp

35 degree Celsius

Drive Power Input

Tactor PTO Shaft

Material of Construction

Impeller

CI FG 200

Delivery Casing

CI FG 200

Shaft

MS

Gland Packing

Nylon Asbestos

Gearbox

High Carbon Steel Gear
