horizontal submersible pumps
horizontal submersible pumps

Salient Features

  • HSP Pumps need to be installed at a certain angle. The stand for the same is also separately available.
  • Can work vertically as well as horizontally (Not completely flat but with some angle).
  • Special bearing used for durability when installed horizontally.
  • Especially useful for lifting water from sump or underground tank to high heads.
  • Benefits of Borewell Pumps (high head) as well as benefits of Openwell Pumps (Easy installation with sufficient water above the pump due to inclined installation).
  • Water Filled Motors.
  • Rugged Construction and Long Life.
  • HSP Pumps available in V4, V6 and V8 models.

Applications

  • Agriculture & Irrigation.
  • Residential.
  • Commercial.
  • Multistorey Buildings.

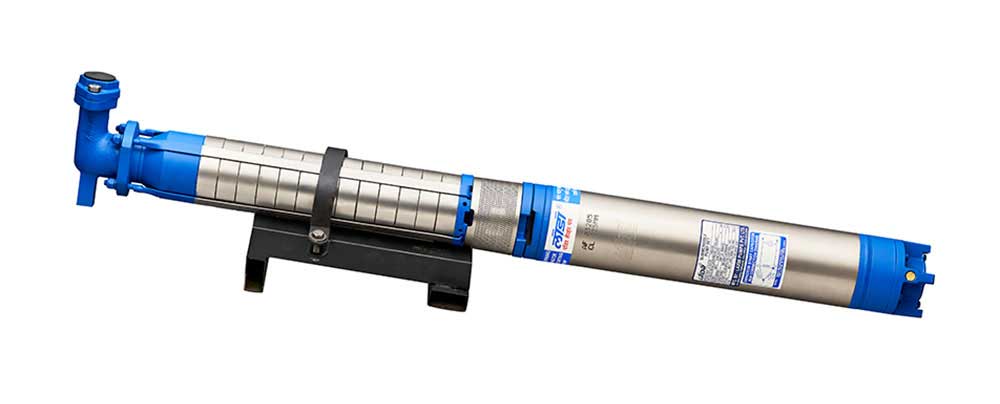

Technical Specifications of V4

Power Rating Range

0.5 HP to 5 HP

Head Range in Meters

9 Meters to 350 Meters

Discharge Range in LPM

370 LPM to 10 LPM

Working Voltage Range

160 Volts to 240 Volts

Hz

50 Hz

Type of Duty

S1

Power Rating Range

1 HP to 7.5 HP

Head Range in Meters

9 Meters to 350 Meters

Discharge Range in LPM

370 LPM to 10 LPM

Working Voltage Range

240 Volts to 440 Volts

Hz

50 Hz

Type of Duty

S1

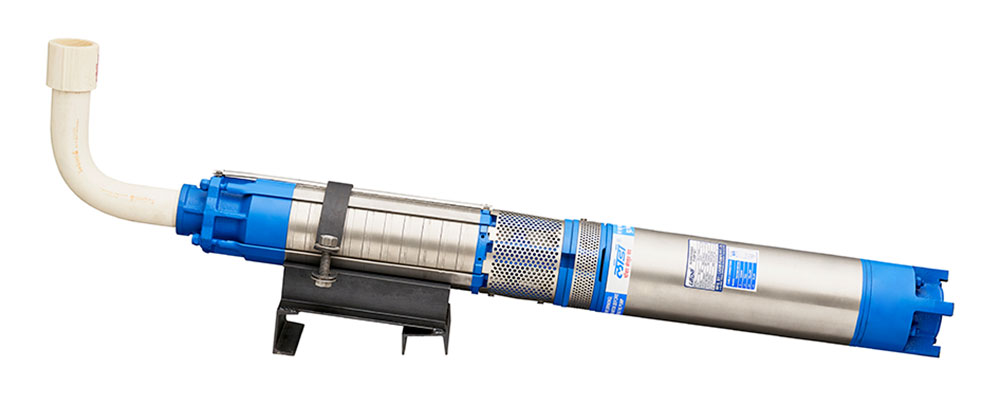

Technical Specifications of V6 (Three Phase)

Power Rating Range

3 HP to 30 HP

Head Range in Meters

12 Meters to 360 Meters

Discharge Range in LPM

1300 LPM to 30 LPM

Working Voltage Range

240 Volts to 440 Volts

Hz

50 Hz

Type of Duty

S1

Technical Specifications of V8 (Three Phase)

Power Rating Range

12.5 HP to 40 HP

Head Range in Meters

16 Meters to 221 Meters

Discharge Range in LPM

2300 LPM to 350 LPM.

Working Voltage Range

300 Volts to 440 Volts.

Hz

50 Hz

Type of Duty

S1
