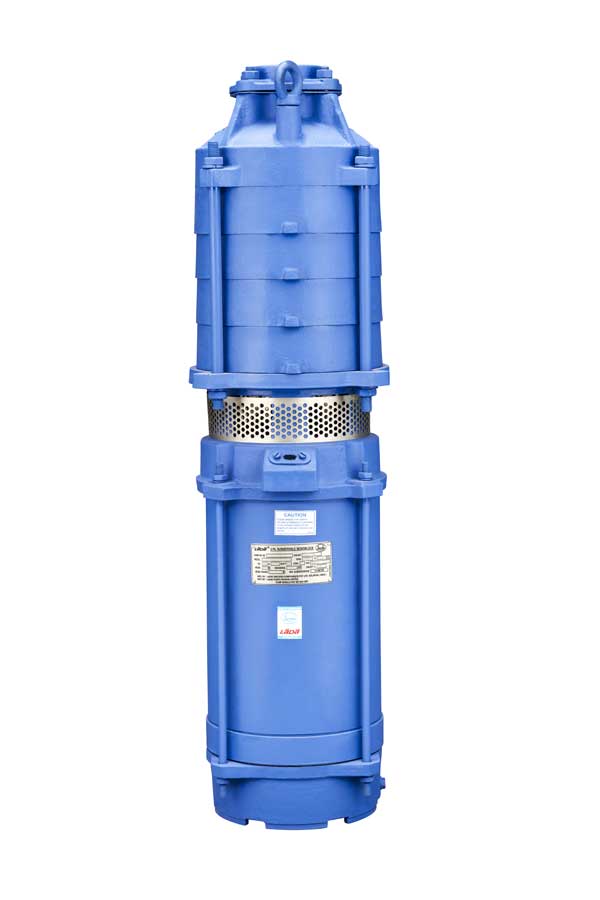

Vertical Openwell Submersibles

Salient Features

  • Carbon/ Stainless Steel thrust bearings.
  • Stainless steel shaft to prevent rusting.
  • Wet type winding with polyester wrapped winding wire & Copper rotor.
  • Can withstand voltage fluctuations from 240V to 440V.
  • Anti-corrosive paint for external surfaces.
  • S1 duty pumps.
  • Models with wide range of discharge and head combination.
  • Built meticulously for meeting the growing demands of customers.
  • Compact in size and easy to install in an open well.

Applications

  • Agriculture purpose.
  • Public water supplies.
  • Industrial uses.
  • High rise buildings.
  • Construction Site.

Technical Specifications

Power Rating Range

3 HP - 25 HP

Head Range in Meters

10 Meters - 210 Meters

Discharge Range in LPM

1600 LPM - 100 LPM

Working Voltage Range

300 Volts - 440 Volts

Insulation

E Class

Max Liquid Temp

35 degree Celsius

Material of Construction

Impeller

CI FG 200

Delivery Casing

CI FG 200

Shaft

AISI-410

Motor Body

CI FG 200 / Stainless Steel / MS

Mechanical Seal

C+CER+BUNA N

Gland Packing

Nylon Asbestos

Rotor

Aluminum/Copper
