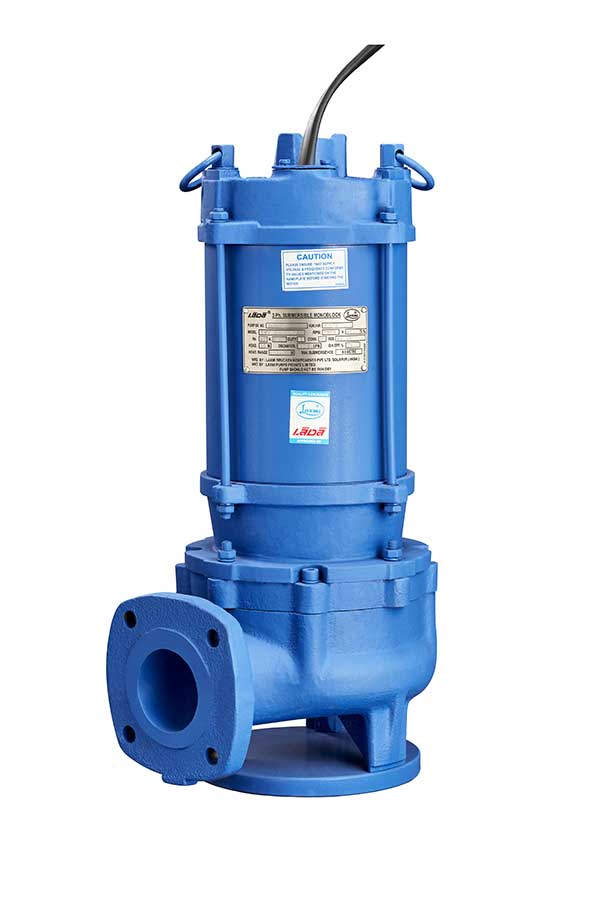

Sewage Pumps

Salient Features

  • Carbon/ Stainless Steel thrust bearings.
  • Stainless steel shaft to prevent rusting.
  • Wet type winding with polyester wrapped winding wire & Copper rotor.
  • Can withstand voltage fluctuations from 240V to 440V.
  • Anti-corrosive paint for external surfaces.
  • Open type impeller provision.
  • S1 duty pumps.
  • 50 mm solid waste material handling capacity.
  • Built meticulously for meeting the growing demands of customers.
  • Compact in size and easy to install in an open well.

Applications

  • Dewatering purpose.
  • Water treatment plants.
  • Sewage treatment plants.

Technical Specifications

Power Rating Range

1 HP - 10 HP

Head Range in Meters

2 Meters– 27 Meters

Discharge Range in LPM

1400 LPM– 100 LPM

Voltage Range

250 Volts -440 Volts

Insulation

E Class

Max Liquid Temp

35 degree Celsius

Material of Construction

Impeller

CI FG 200 / Noryl

Delivery Casing

CI FG 200

Shaft

AISI-410

Motor Body

CI FG 200 / Stainless Steel / MS

Mechanical Seal

C+CER+BUNA N

Gland Packing

Nylon Asbestos

Rotor

Aluminum / Cooper
