Quality Spares

All motors are fitted with tilting pad carbon / S.S . thrust bearings with excellent surface finish.

All motors are fitted with tilting pad carbon / S.S . thrust bearings with excellent surface finish. More life under extra high depth Borewells.

All motors are fitted with tilting pad carbon / S.S . thrust bearings with excellent surface finish. More life under extra high depth Borewells.

All casting parts are FG220 grade with 180-220 BHN hardness. All castings are painted with epoxy paint to ensure higher strength and to prevent rusting under water.

Mix Flow Stage Casing

Motor Adaptor

V4 Mix Flow NVR Body

V6 NVR Body

Suction Piece Assembly

V4 NVR Body

V6 Pump Adaptor

V4 Discharge Outlet Assembly

Gunmetal Bush is made from LTB4 material which gives long life to the motors.More number of bushes are used for higher stages which gives excellent mechanical stability.

Carbon Bush is provided to give lower wear resistance to the bearing diameter of motor shafts. This gives long life to the motors.

Rotor is made from CRNO grade stamping with E.C. Grade Copper bar & end rings. Rotor ends are brazed with 2 % silver brazing rod.

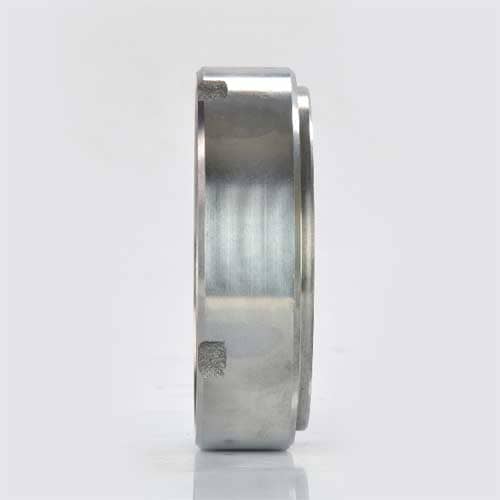

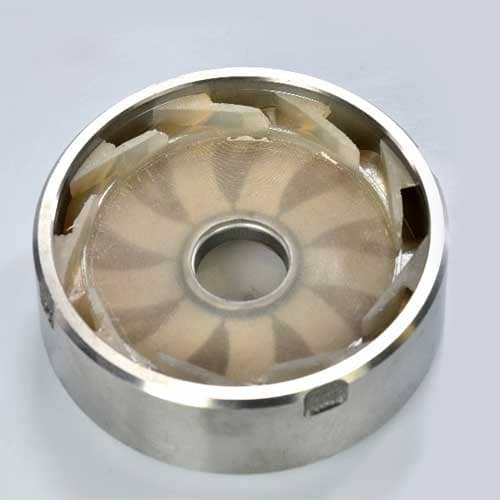

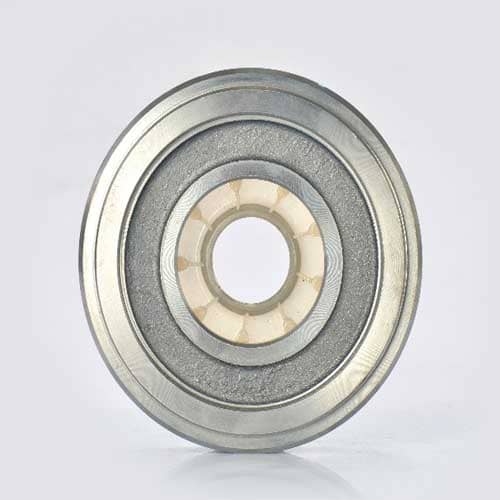

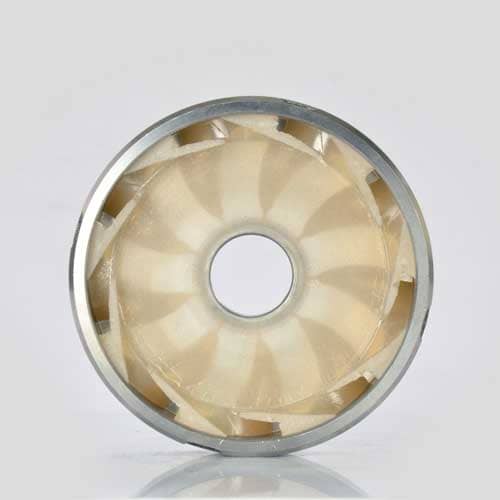

Stage bowls of Radial flow pumps are made of FG220 graded castings.Polycarbonate diffusers with S.S. ring are securely fitted in casing.

All polycarbonate parts used are of 20% Glass filled material which gives long life in running operation.

All pump shafts are of SS 410 material .

All rubber parts are using nitrile rubber having 75/80 shor hardness.

SS 431 material is used which has hardness from 28 to 32 HRC.

Spline Coupling Rotor

SS Impellers

All SS Impellers are made of SS 410 material and thoroughly balanced dynamically.

Typical Lada designed Tanon & slot type S.S. coupling gives extended life.No maintenance and No replacement. All SS Sleeves are made of SS410 material as to withstand lifelong operation.

Stamping with CRNO Grade and are finished with progressive die.

Stator is made of CRNO Grade stamping with less watt loss. Stator Jacket is made of SS material which covers entire stack length.

Virgin NORYL material is used for impeller & diffusers. S.S. neck ring at all wear areas. Gives extended life, better dimensional accuracy even under water.

Rotor is made from CRNO grade stamping with E.C. Grade Copper bar & end rings. Rotor ends are brazed with 2 % silver brazing rod.

Rotor is made from CRNO grade stamping with E.C. Grade Copper bar & end rings. Rotor ends are brazed with 2 % silver brazing rod.

High quality E.C. grade copper is used. Triple coated polyester wrapped winding wire. Better efficiency and more life under low voltage.

Hardened And Toughened SS 431 and SS 410 Grade Material.
