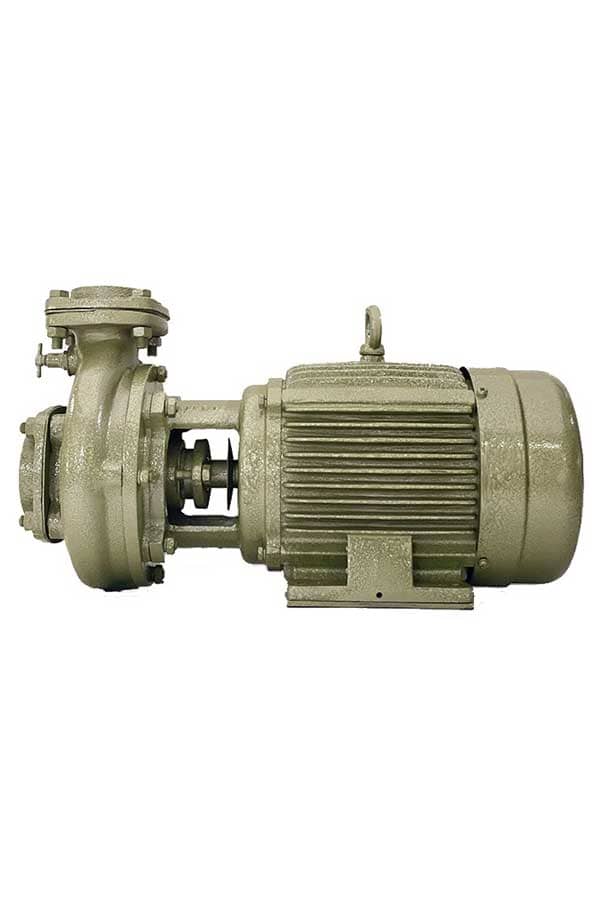

Monoblock – DR Series

Salient Features

  • Stainless Steel ball bearings on both the sides.
  • Ability to withstand high voltage fluctuations from 250V to 440V.
  • Air cooled by using fans.
  • Suction capacity 25 ft.
  • Anti-corrosive paint for external surfaces.
  • S1 duty pumps.
  • High efficiency & energy saving design.
  • Built meticulously for meeting the growing demands of customers.
  • Compact in size for easy to installation

Applications

  • Sprinklers & Drip irrigation.
  • Commercial Complexes & High-Rise Buildings.
  • Agriculture & irrigation Purpose.

Technical Specifications

Power Rating Range

3 HP to 25 HP

Head Range In Meters

12 Meters to 78 Meters

Discharge Range In LPM

2550 LPM to 150 LPM

Working Voltage Range

250 Volts to 440 Volts

Operating Speed

2800 RPM

Insulation

F Class

Max Liquid Temp

35 degree Celsius

Sealing Arrangement

Gland Packing / Mechanical Seal

Material of Construction

Impeller

CI FG 200

Delivery Casing

CI FG 200

Shaft

AISI-410

Motor Body

CI FG 200

Mechanical Seal

C+CER+BUNA N

Gland Packing

Nylon Asbestos

Rotor

Aluminum
