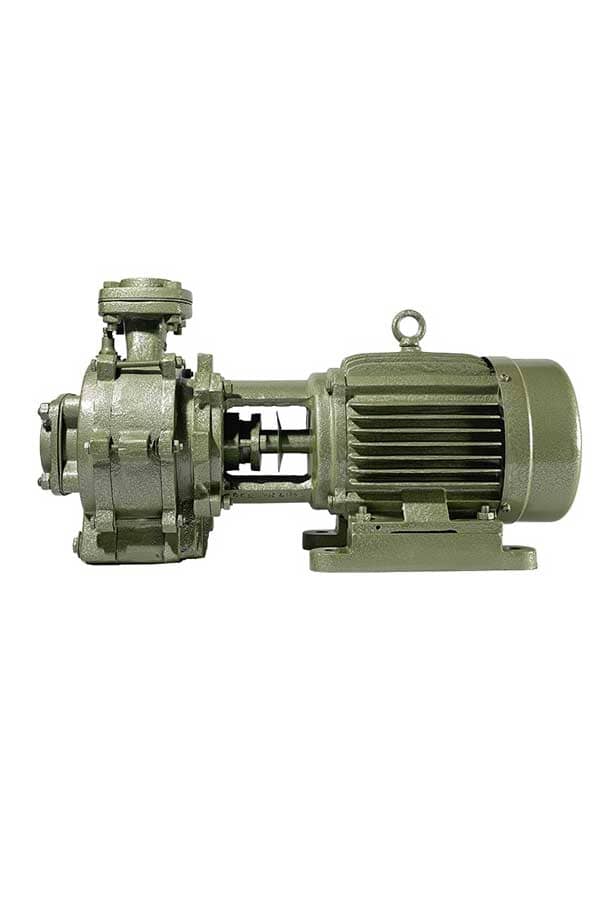

Monoblock - DS/DSDR Series

Salient Features

  • Stainless Steel ball bearings on both the sides.
  • Ability to withstand high voltage fluctuations from 250V to 440V.
  • Pumps up to 2HP are available in single as well as three phase.
  • Air cooled by using fans.
  • Suction capacity 25 ft.
  • Anti-corrosive paint for external surfaces.
  • S1 duty pumps.
  • Non-overloading power curve within the operating head range.
  • Top flat efficiency curve for the entire operating range.
  • Built meticulously for meeting the growing demands of customers.
  • Compact in size for easy to installation

Applications

  • Sprinklers & lift irrigation.
  • Village water supply schemes.
  • Commercial Complexes
  • Apartments & high-rise buildings.

Technical Specifications

Power Rating Range

1 HP to 30 HP

Head Range In Meters

10 Meters to 100 Meters

Discharge Range In LPM

1210 LPM to 15 LPM

Working Voltage Range

250 Volts to 440 Volts

Operating Speed

2800 RPM

Insulation

F Class

Max Liquid Temp

35 degree Celsius

Sealing Arrangement

Gland Packing / Mechanical Seal

Material of Construction

Impeller

CI FG 200

Delivery Casing

CI FG 200

Shaft

AISI-410

Motor Body

CI FG 200

Mechanical Seal

C+CER+BUNA N

Gland Packing

Nylon Asbestos

Rotor

Aluminum
