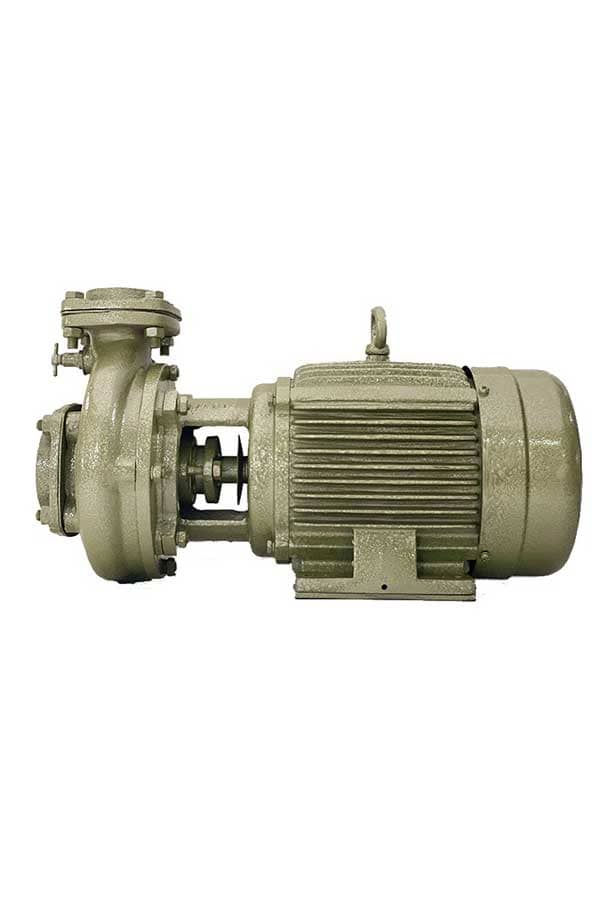

Monoblock – LVH Series

Salient Features

  • Stainless Steel ball bearings on both the sides.
  • Ability to withstand high voltage fluctuations from 250V to 440V.
  • Single phase 460V & 230 V Monoblock pumps are also available from 0.5 HP to 5 HP.
  • Air cooled by using fans.
  • Suction capacity 25 ft.
  • Anti-corrosive paint for external surfaces.
  • S1 duty pumps.
  • High efficiency & energy saving design.
  • Built meticulously for meeting the growing demands of customers.
  • Compact in size for easy to installation

Applications

  • Sprinklers & Drip irrigation.
  • Industrial use.
  • Domestic Use.
  • Agriculture & irrigation Purpose.

Technical Specifications

Power Rating Range

0.5 HP to 40 HP

Head Range In Meters

6 Meters to 78 Meters

Discharge Range In LPM

2550 LPM to 10 LPM

Working Voltage Range

250 Volts to 440 Volts

Operating Speed

2800 RPM

Insulation

F Class

Max Liquid Temp

35 degree Celsius

Sealing Arrangement

Gland Packing / Mechanical Seal

Material of Construction

Impeller

CI FG 200

Delivery Casing

CI FG 200

Shaft

AISI-410

Motor Body

CI FG 200

Mechanical Seal

C+CER+BUNA N

Gland Packing

Nylon Asbestos

Rotor

Aluminum
